• Model NO.：SB38NC
• Rotary：Fixed
• Customized：Customized
• Shape：Profile
• Condition：New
• Max. Capacity：Carbon Steel Od38mm
• Max Bending Degree：185
• Max. Bending Radius：R200
• Min. Bending Radius：1.5D
• Max. Feeding Distance( with Mandrel)：1800mm (Customized)
• Voltage：380V,415V, 50Hz, 3pH
• Power：4kw
• Cooling System：Air Cooling,Water Cooling
• Suitable for：Carbon Steel, Stainless Steel, Copper, Aluminium..
• Tube Shape：Round, Square, Rectangular, Elliptical, Profile
• Hydraulic System Control：Electromagnetic Valve
• Size L W H(Cm)：225 X 66 X 117
• Machine Weight：600kg
• Transport Package：Woodbox
• Specification：MS pipe OD smaller than 38mm
• Trademark：HUMPER
• Origin：Zhangjiagang, China
• HS Code：8462219000
• Production Capacity：100,Month

NO.

Name

Model

Origin

Brand name

Mark

1

Ac contactor

LC1-1810

France

Schneider

220V 50HZ

2

Transformer

JBK3-110

Beijing

People Ele

380V/220V

3

Switch power

S-100-24

Taiwan

Mealwell

24V

4

Singlechip

Changzhou

Kebi

5

Relay

LRN 21

France

Schneider

18A

6

Approach switch

Taiwan

Tend

7

Electric motor

Y112M-2

Wuxi

Taihu

4KW

8

Start-up button

NP4-11DM

Zhejiang

Zhengtai

220V

9

Stop button

NP4-11ZS

Zhejiang

Zhengtai

220V

10

Coder

Japan

Nemicon

11

Various magnetic valve

Japan/Taiwan

Yuken/Seven ocean

12

Oil tank

Shanghai

Baoshan

13

Seal ring

Taiwan

DZ

14

Oil pipe

Taiwan

Lianhui

Specifications:

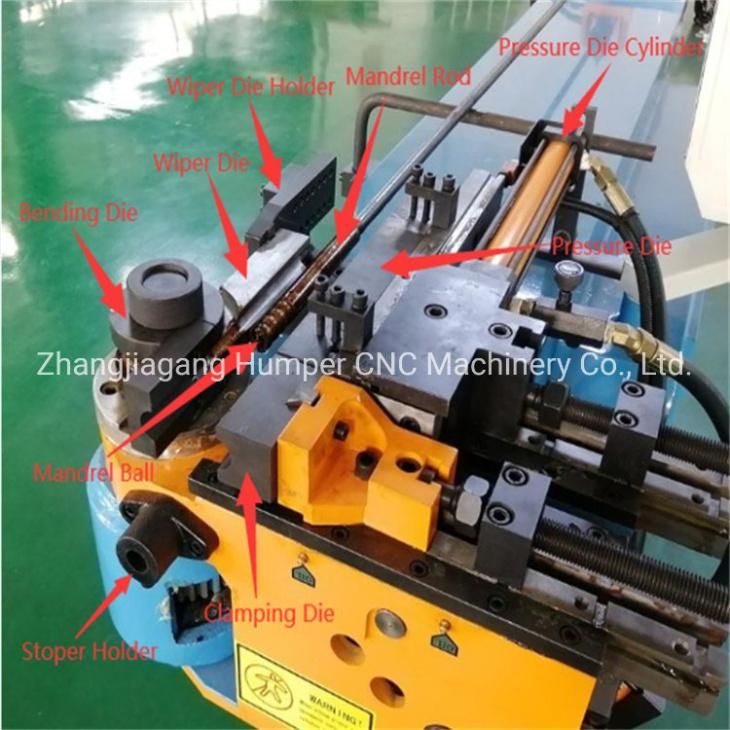

Bending Die Sets:

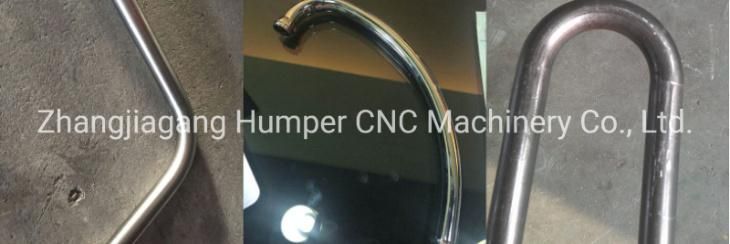

Bending Samples:

Package: Woodbox

Payment terms and After sales service:
1.Payment terms: 30% by T/T payment in advance, 70% by T/T before shipment.
2.Delivery time: Usually no later than 15 days after receiving the 30% by T/T payment in advance.
3.Package: Wooden box.
4.Warranty period: One year. During the year, if any spare parts of the machine are naturally damaged, we support to send it to the customer for free, but the freight cost should be borne by customer.

5.If it is needed, we can send our engineer to the customer's factory for installing. The customer should provide our engineers air tickets of both coming and back, commission, hotel, food, drinking and other needed help; The customer should ensure our engineers' safety and pay our engineer per day. The customer also can send the engineer to our factory to learn the operation and maintains freely.

6.Our factory provide the service for the customer forever, if the customer need operation help, the customer can contact us through Skype, Whatsapp, Wechat, Email  or Telephone at any time. If very urgent, Wechat is the best choice to find us.

FAQ:

1. How do we know which type of pipe bending machine we need?

We have professional engineers. They'll give the most suitable and professional suggetions. You have to inform us following details:

     - Pipe Material

     - Pipe Outside Diameter(OD)

     - Thickness

     - Bending radius (CLR)

     - How many bending angles in one pipe ? The CLR for all bending angles is the same one or not?

     - The CAD drawings(or sending sample pipes to us) if possible
