Basic Info.

Model NO. HBE-SR-10 Customized Customized Condition New Transport Package Knock Down Package, with Bubble Film Specification CE, ROHS, TUV Trademark Highbright Origin Jiangsu, China HS Code 732620900 Production Capacity 1000PCS Per Month

Product Description

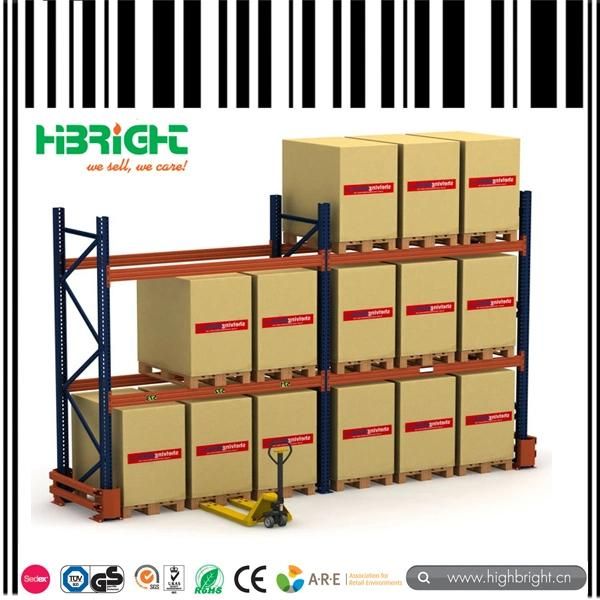

Heavy Duty Supermarket Storage Warehouse Rack, Storage shelving and rack, Warehouse shelf





Features:

1) Height: 1800-2500mm
2) Width: 450-600mm
3) Length: 1200-2000mm
4) Load capacity: 200-500kg/layer
5) Material: Cold rolled steel tube
6) Separable
7) Can be connected with another shelf
8) Available in assorted colors
9) Practical, convenient and attractive
10) Customized orders welcomed

Outer packing:
Knockdown packaging according to part dimensions

Upright frames Keyhole-style post Cross section 3" x 3"	Size (in inch)	Size (in mm)	Weight  (kgs)
1( thickness 1.9mm )	36" X 96"	914.4*2438.4	27.591
2( thickness 1.9mm )	36" X 120"	914.4*3048.4	33.731
3( thickness 1.9mm )	36" X 144"	914.4*3657.6	38.607
4( thickness 1.9mm )	36" X 168"	914.4*4267.2	45.084
5 thickness 1.9mm )	36" X 192"	914.4*4876.8	49.929
6( thickness 1.9mm )	36" X 216"	914.4*5486.4	55.702
7( thickness 1.9mm )	36" X 240"	914.4*6096.0	62.679
8( thickness 1.9mm )	42" X 96"	1066.8*2438.4	28.999
9( thickness 1.9mm )	42" X 120"	1066.8*3048.0	35.210
10( thickness 1.9mm )	42" X 144"	1066.8*3657.6	39.984
11( thickness 1.9mm )	42" X 168"	1066.8*4267.2	46.594
12( thickness 1.9mm )	42" X 192"	1066.8*4876.8	51.306
13( thickness 1.9mm )	42" X 216"	1066.8*5486.4	57.232
14( thickness 1.9mm )	42" X 240"	1066.8*6096.0	64.709
15( thickness 1.9mm )	48" X 96"	1219.2*2438.4	30.529
16( thickness 1.9mm )	48" X 120"	1219.2*3048.0	36.740
17( thickness 1.9mm )	48" X 144"	1219.2*3657.6	42.871
18( thickness 1.9mm )	48" X 168"	1219.2*4267.2	48.195
19( thickness 1.9mm )	48" X 192"	1219.2*4876.8	53.091
20( thickness 1.9mm )	48" X 216"	1219.2*5486.4	58.813
21( thickness 1.9mm )	48" X 240"	1219.2*6096.0	66.769
