1.Construction: Frame, full overlay, 1/4" reveal on the side and 1/2" reveal on top & bottom.2.Material:   1  Door&drawer front:  3/4"thickness Solid Russian birch, shaker style, 2 3/4" stiles & rails   2  Face frame:  1 1/2"x3/4" Solid Russia birch   3 The carcass:All with CARB P2 standard plywood with wood veneer.                         A).Side panel,floor, top :1/2"plywood,                        B).Shelves;5/8"plywood, 10 1/2" depth for base cabinet , 10 1/2"depth for wall cabinet                        C).Back panel: 1/4" plywood with 3" x 1/2" frame.                        D).Drawer box: 5/8" solidwood with 1/4" plywood floor.dovetail joint   4 Hardware:  A). White undermount glide( upgrade to soft closed under mount glide charge $4.3per drawer)                         B). 4 ways conceal Hinge( upgrade to soft closed hinge charge $0.33 per hinge)                         C). Handles are excluding3.Finish: Box-UV clear coating for interior, UV coating for exterior(same color as door).Face Frame &Door: All PU painting
Carcase Comparasio

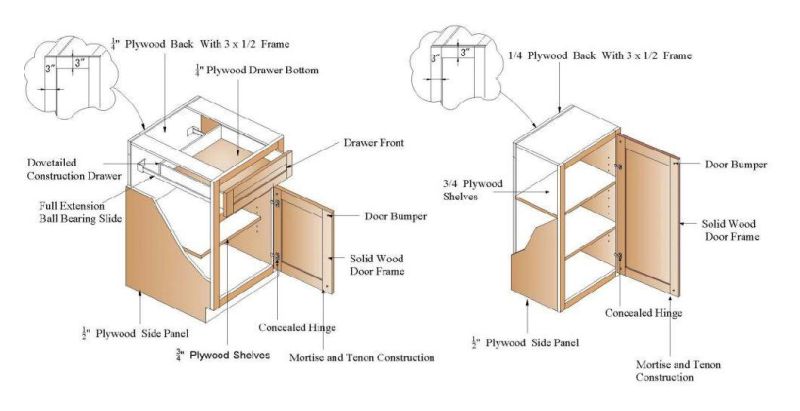

Face Frame Cabinets Construction

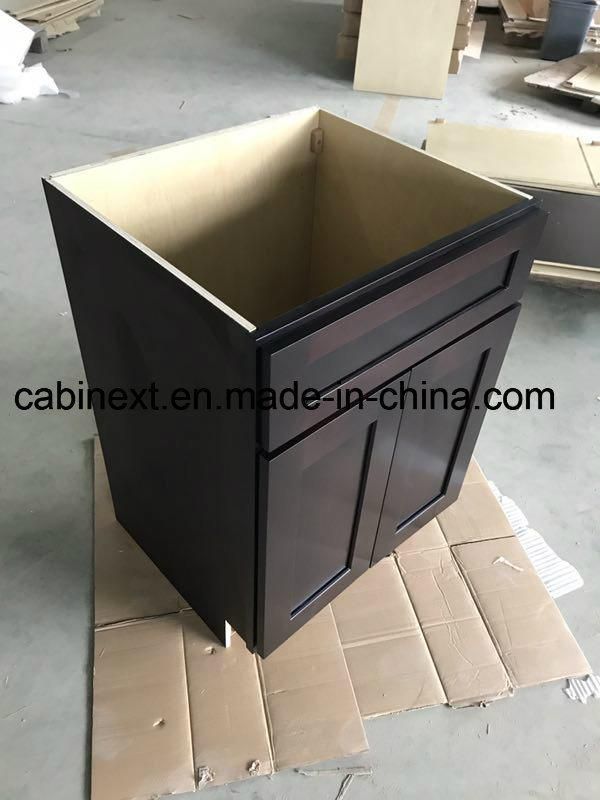

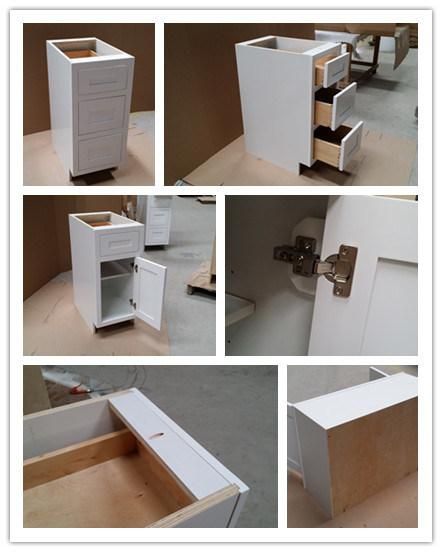

Real Products Show



Show in Factory
