Basic Info.

Model NO. JH-SL164 Worktop 19mm Epoxy Resin/16mm Lab Grade Phenolic Resin Reagent Shelf Steel and Tempered Glass Drawer Slide Dtc 3-Joints Drawer Slide Without Noise Hinge 304 Stainless Steel Hinge Cabinet Material High Quality 1.0/1.2mm, Cold Rolled Sheet Handle Stainless Steel U-Type Handle Transport Package Carton, Wooden Case Specification SGS, ISO9001 Trademark GLORYLAB Origin China HS Code 9403609990 Production Capacity 5000sets/Month

Product Description

10+ years of manufacturing and exporting experience

Model: JH-SL164


Multi-functional column designed for modern laboratory furniture is  a  highlight  part  in modern
laboratory. It  offers complete  service  combing water, various gas and electricity etc. It not only
provides convenience to operators,but also simplifies lab construction work by  offering  enough
space  for  various  systems  to be located in column with divided design. So all systems can be
well organized and achieve effectively distinguish various pipeline arrangements.

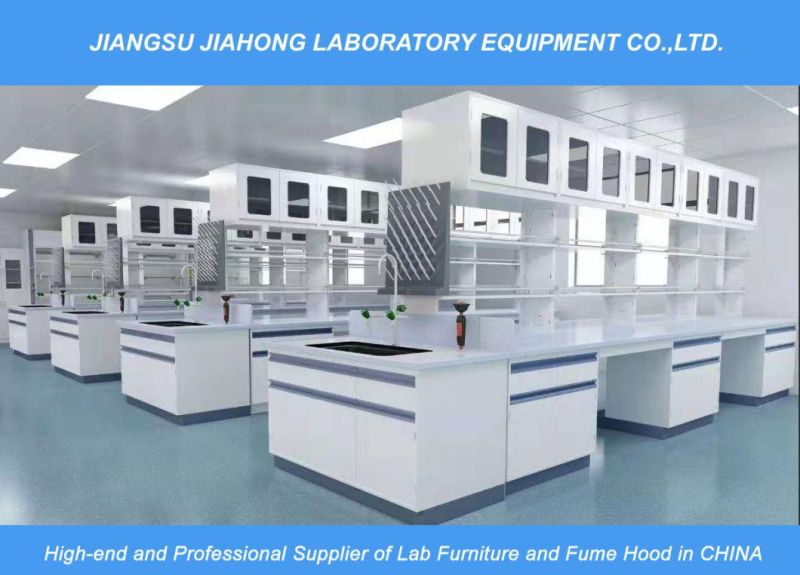

Description about central lab table:

As  a  main  component  o f lab bench, the island bench is  suitable for the middle position of the
laboratory and is the main platform for experimental activities.
It is suitable for multifunctional laboratory and can change various experimental  environment  at
will.

Specification: 3500mm x 750mm x 850/900mm

Worktop Material: According to customer requirements(16/19mm Lab grade phenolic resin/19mm
epoxy resin/ Trespa/20mm Stainless steel/20mm Ceramic worktop etc.
Cabinet  body  is made of 1.0mm coldrolled/galvanized steel sheet,  cutting Laser  and  bending
production, with well performance in weight-bearing and long lifetime.
Door with double layer design and embedded with sound absorbing material and minimize noise
hen door is closed. Door and drawer with collision-proof pad.
Drawer Rail: Brand three-joints model, easy to slide, less noise.
Hinge:  stainless  steel  304  material,  anti-corrosion  with 180 degree opening  and  self-closing
function is  available.
Construction  type:  floor standing/movable. Steel  frame (C-frame/Oframe/H-frame with hanging
cabinets. Or steel frame with movable cabinets.

Multi-functional column is specially suitable for movable modern laboratory furniture to fit possible
various experimental working environment and match updated requirements in the future.

1. Certification:
Authorized SGS  certification showing the conformity of US standard SEFA-8M, which test  many
items  including weight capacity of steel cabinet etc. This  certification shows the superior  quality
of our steel bench and it can meet the highest standard in this field.

2. Quality improvement
While complying  with highest  standard  of  lab  bench, we  also  focus on improvement  of steel
cabinet and its accessories. Pls see details as below:
I. Insisiting on using high quality accessories.
II. Adding  sound  absorbing material  inside  the door to minimize the noise when door is closed.
III. Open mould to make specialized collision bead to reduce the noise at most.
IV. Applying  a  variety  of  welding  technology  which  lead  to  excellent  whole  weight capacity,
meticulous welding and exquisite welding spot.

3. Prominent appearance
We pay attetion to every step  during  production especially  on welding, polishing and coating of
epoxy resin powder which decide the final appearance and keep improving continously.

4. Strict quality control:
It's our  goal  to  seek  perfect  products and service for customer's satisfaction. Pls contact with
us once you have any idea or suggestion on product design, quality improvement or service etc.

Material Description of steel lab furniture:

Worktop	a.12.7/16/19mm lab grade phenolic resin countertop. b.16/19mm epoxy resin countertop. c. 20mm ceramic countertop. d. 20mm stainless steel countertop mounted with 18mm plywood/MDF. e. 16/20mm trespa countertop.
Structure	Floor mounted/C-frame/H-frame/O-frame
Size	L*750/1500*850/900mm.(LxWxH) or customization
Color	White, gray, blue or specified by customer
Cabinet /panel material	1.0/1.2mm cold-rolled/galvanized steel sheet coated with epoxy resin powder after acid pickling, phosphating,oil and rust removing.
Door and drawer	double-layers structure with sound absorbing material inside,keeping noise minimum when door is opened or closed.
Cabinet size	450/500/600/900/1000mm wide or customized size.
Frame	60x40x2.0/40x40x1.5mm/30x30x1.5mm steel pipe coated with epoxy resin powder.
Hinge	304 S.S hydraulic/exterior hinge.
Handle	U-shape 128/160mm S.S handle, aluminum alloy grab handle,or any type specified by customers.
Reagent shelf	made up of tempered glass and steel plate. Optional model: normal/American model.
Wall mounted cabinet	Single/double door with all-steel door or steel door embedded with glass, with 1 adjustable shelf.
Sink	Polypropylene/ceramic/epoxy resin sink.
Faucet	single-outlet/triple-outlets faucet, hot-cold water faucet.
Socket	Universal/British/European socket, water-proof or explosion proof socket. with steel separate standout or long aluminum electric trunking, based on customers' local needs.

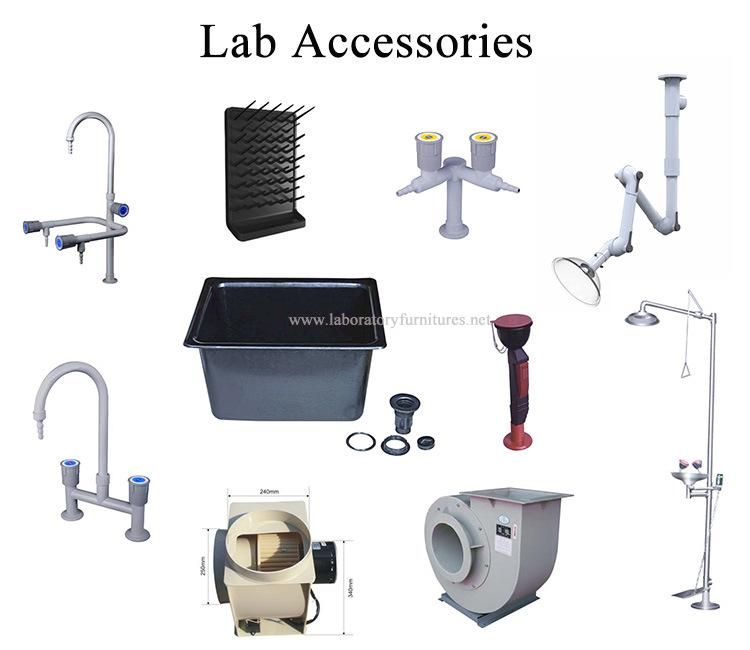

Other available accessories	PP/stainless steel pegboard, eye wash, emergency shower,lab stool etc.

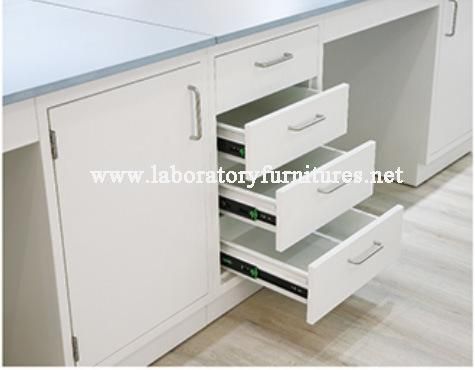

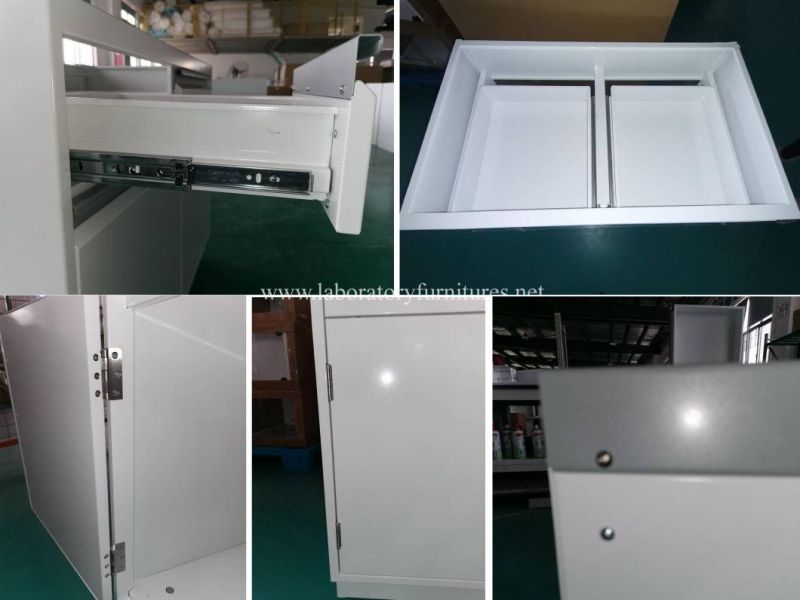

Product Details:

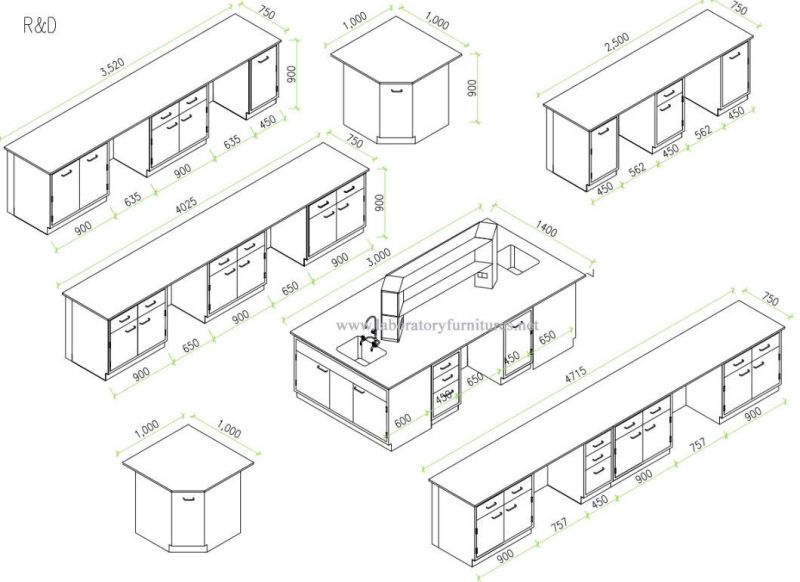

2D drawing for free:

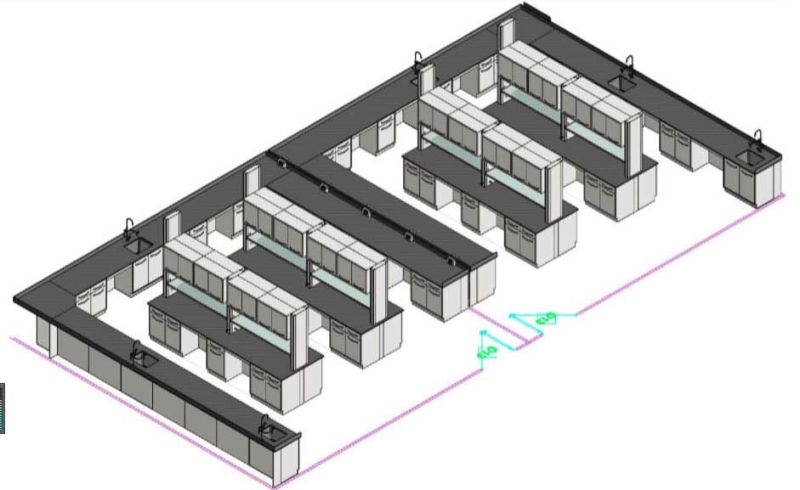

3D design for free:

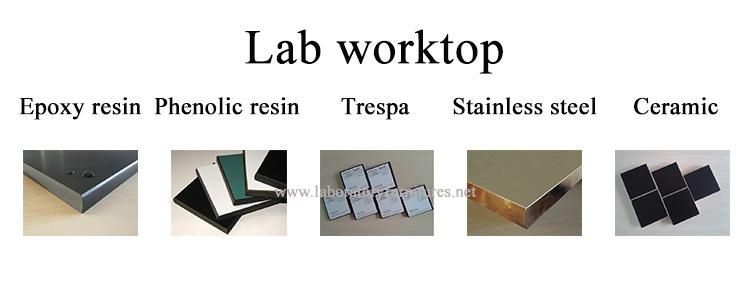

Worktop Instroduction:

	Lab-grade phenolic resin worktop.	Epoxy resin workstop	Ceramic workstop
Ingredient	Dipping phenolic resin into special multi-layer kraft paper , it is hot-solidformed under high temperature and pressure.	Quartz sand and epoxy mixed with special bond	Combined clay,kaolin and feldspar mixed with many special material
Corrosive resistance	It is resistant for many kinds of acid,alkali,solvent and reagent etc.	It is resistant for many kinds of acid,alkali,solvent and reagent  etc	Excellent
Heat resistance	Normal: 135ºC, it could not touch flame directly.	600ºC heat resistance	1000ºC heat resistance
Colour	Black,gray,dark green	Gray,gray,green	Black,gray,white,green
Worktopthickness	12.7mm,16mm,19mm	16mm,19mm,25mm	20mm
Water       resistance	water absorption:0.6%	water absorption:0.008%	Excellent
Physicsfeature	Good	Good	Excellent

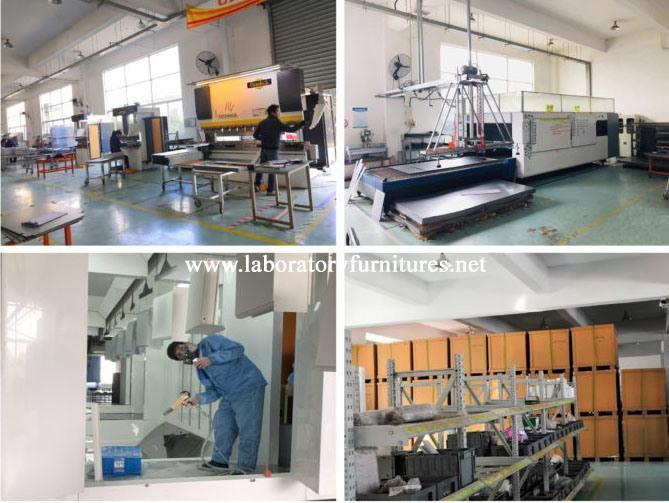

Production Line:
To  ensure  excellent  craftmanship / product  precision / production  capacity, our  company  is
equipped with a series of automatic imported/CNC facilities including laser / punching /bending
/ caving machine,  as  well  as welding  robot and automatic coating line etc. Our company has
become  one of  the most  outstanding  enterprises  in  CHINA  who  own  the  most  advanced
production equipments and huge production scale in our field.

Packing:
Carton for LCL goods, wooden case for FCL goods.
We will deliver goods timely and safely.
Pls inform us if you have any special packing needs.

Shipping:
By train/air/sea as per goods volume&delivery schedule of customers.
Container type: 20GP, 40GP, 40HQ.
Seaport: Shanghai or any specified port in CHINA.

Seaport: Shanghai or any specified port in CHINA.

Installation:
The  installation  procedures are  extremely  simple  due  to  special  structure design.It can be
completed by customers themselves efficiently by using a screw knife.We can offer installation
drawing/guidance/vedio/online help as assistance.

Required information prior to designing and offering quote:
1. CAD or draft plan drawing
2. Specify lab area which should be equipped with lab furniture.
3. Design selection as per our given catalogue.
4. Material requirements especially for worktop&cabinet.
5. Particular or special requirements if necessary.

Q: What certifications do you have?ISO9001, CE, SGS, SEFA, ASHRAE110
Q: How to arrange payment after confirming order?
A: We accept various payments including T/T, LC,Cash etc.

Q: What is the delivery time normally?
A: Within 6-20 working days after receiving deposit.

Q: How to ensure quality of products?
A: Quality is the life of our company. We have working experience more than 10 years in
this field. Meanwhile, all goods are double checked as per strict QC control procedures.
Customers are welcome to check quality before shipping.

Q: How to secure sample from your company?We offer free sample if it's small and postage needs to be charged.
